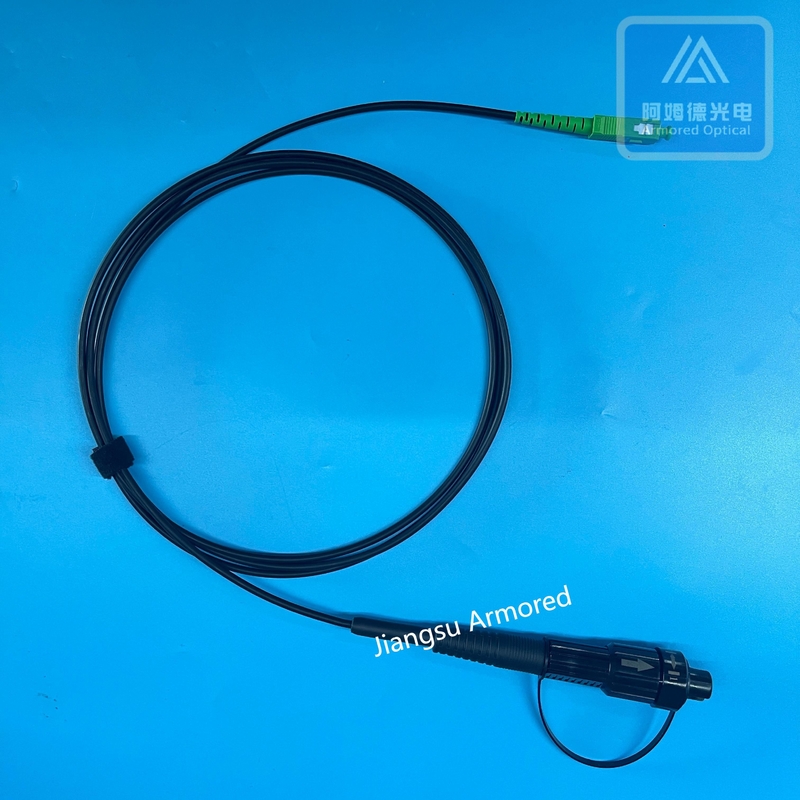

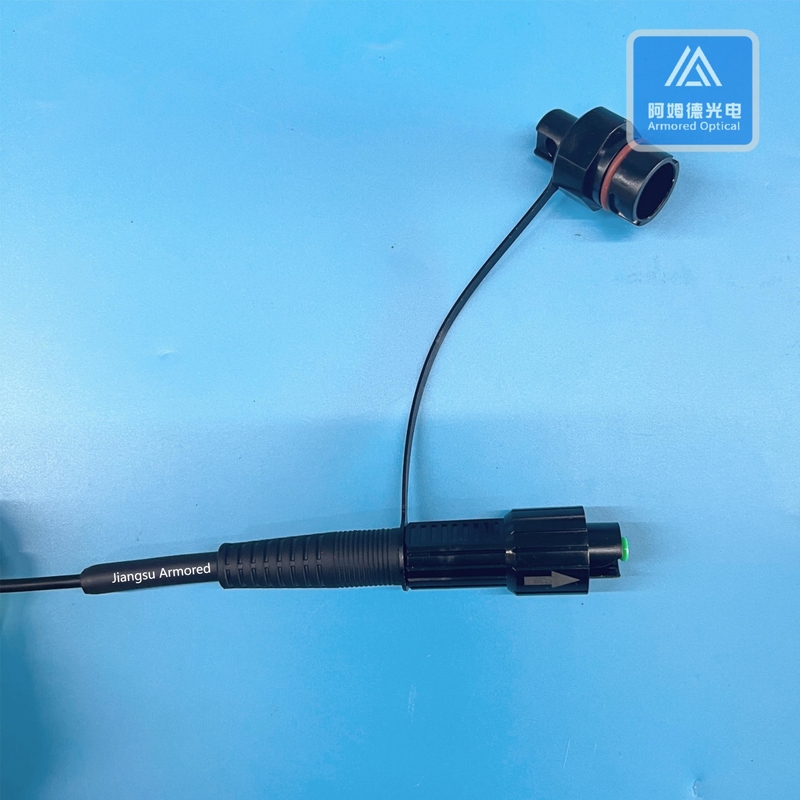

Armored Fiber Patch Cable with Compatible Huawei -SC/APC Connector  LSZH Jacket

Armored Fiber Patch Cable with Compatible Huawei -SC/APC Connector LSZH Jacket

  • Resaltar

    Cables de conexión de fibra blindada LSZH

    ,

    Cable de parche de fibra blindada de Huawei

  • Name
    Simplex Armored Patch Cord
  • Fiber Mode
    SM G657A2
  • Armored Tube
    Stainless Steel
  • Diameter
    3mm
  • Jacket
    LSZH
  • Color
    Black
  • Cable length
    2M, 1-100M can be customized
  • Application
    FTTH
  • Flame Rating
    IEC60332-1-2, OFCR,or CPR
  • Feature
    Rodent Resistant
  • Lugar de origen
    porcelana
  • Nombre de la marca
    JIANGSU ARMORED
  • Certificación
    ROHS
  • Número de modelo
    La información que se proporciona en el anexo I se incluirá en el anexo II.
  • Cantidad de orden mínima
    Cable de 1000 M
  • Precio
    To Be Advised
  • Detalles de empaquetado
    Bolsas de plástico, cartón y palets.
  • Tiempo de entrega
    2 semanas laborales
  • Capacidad de la fuente
    500 piezas de conector por día

Armored Fiber Patch Cable with Compatible Huawei -SC/APC Connector LSZH Jacket

Armored Fiber Patch Cord with Compatible Huawei -SC/APC Connector LSZH Jacket

Armored Fiber Patch Cable with Compatible Huawei -SC/APC Connector

Patch Jumper LSZH Jacket Flame-resistant, FTTH, FTTX





Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC),

making them adaptable to different networking and communications equipment.



Item Simplex Armored Patch Jumper
Fiber G657A
Cable Diameter 3.0 MM
Cable Jacket Black LSZH
Length 3M
Insert Loss < 0.30dB
Return Loss ≥50dB (UPC), ≥60dB (APC)
Temperature  -40℃~80℃
Fan-out Cable N/A

Cable Grade



Dca, Comply with ROHS



Armored Fiber Patch Cable with Compatible Huawei -SC/APC Connector  LSZH Jacket 0

Armored Fiber Patch Cable with Compatible Huawei -SC/APC Connector  LSZH Jacket 1

Armored Fiber Patch Cable with Compatible Huawei -SC/APC Connector  LSZH Jacket 2





Telecommunication

Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks,

like FTTA, FTTH, FTTB, FTTR, etc..



Outdoor equipment

Spiral armored fiber cables are suitable for outdoor use, because Spiral armored fiber cables are UV- resistance, and can take temperature fluctuations, then are often used for outdoor communication networks, industrial and infrastructure projects.
